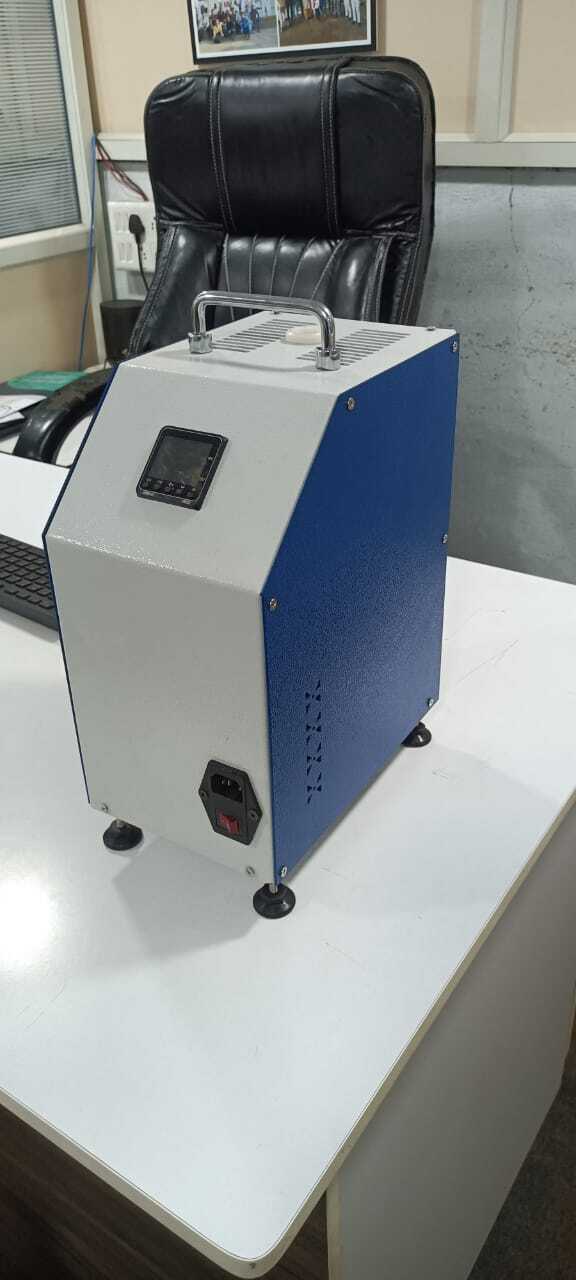

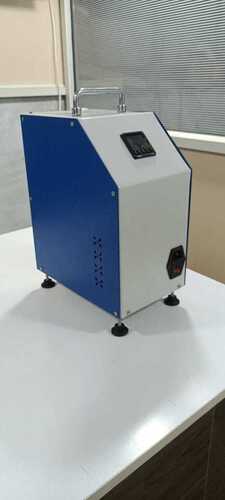

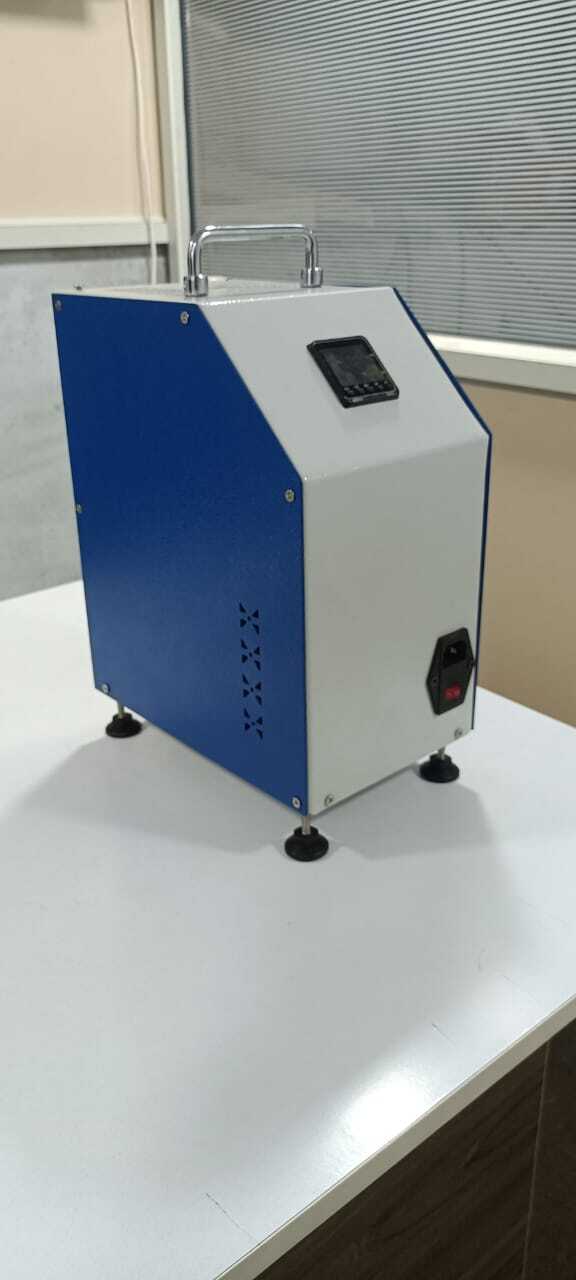

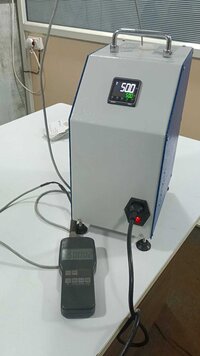

DRY BLOCK CALIBRATOR -30

Product Description

Technical Specification: -

Temperature Range: -30 C to +100 C @ 25±2C Ambie temperature.

Display Resolution: 0.1

Control accuracy: ± 0.05 C Below Ambient temperature.

Control accuracy: ± 0.1 "C Above Ambient temperature.

Thermal stability: ±0.1 @50 C (calculated after stabilization tim

10 minutes)

Thermal Nonuniformity (Radial): ± 0.16@ 100 C, +0.12 C @ -25C,

Time - Ambient to -30C (20 minutes)

Ambient to 100C. (8 minutes).

Power supply: 230 VAC ±2 / 50-60 Hz.

Current: 3.5 Α.

Block Diameter: 22mm

Block Immersion:- 115mm

Insertion Tube Diameter: - 22mm

Dimension:- 300mm x 280mm x 220mm

Insertion Tube Length Insertion Tube Depth

Power Consumption: single phase, 190 Watt maximum.\

Sound: 30 db.

weight: 11.8kg(Approx)
